2.6. “Drive Profile” Page

This page allows you to select the control mode for executing movements. The available modes are:

  • Binary: Movement control using digital or analog inputs and digital outputs.

  • Tipp/Teach: Movement control using digital or analog inputs and digital outputs. In this mode, it is possible to modify the target positions of existing movements using digital inputs.

  • Step/Direction: Movement control based on step and direction signals. This mode is only available for stepper motors.

  • CANopen: Movement control via the CANopen communication protocol.

  • Modbus TCP: Movement control via the Modbus TCP communication protocol.

Next, we will describe the configurations to apply to the motors in our gantry robot setup.

2.6.1. Stepper motor (Z axis)

For the stepper motor, we select the “step/direction” control mode. Fig. 14 below shows the “Drive Profile” configuration page for the stepper motor controller when using the “step/direction” control mode. This control mode does not require any additional configuration; the page will simply show usage information for the step and direction signals.

../../_images/06-drive_profile.png

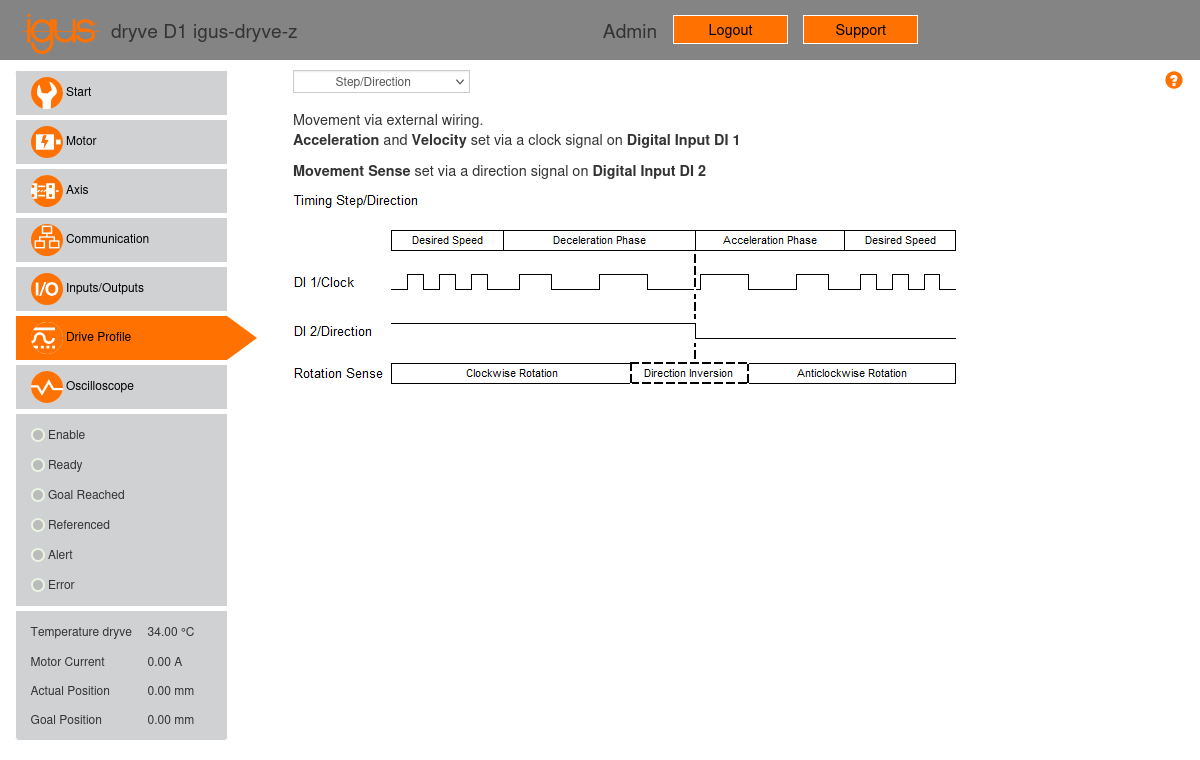

Fig. 14 “Drive Profile” configuration page of the Z motor controller, using the “step/direction” control mode.

2.6.2. Brushless motors (X1, X2, Y axes)

For the brushless motors, we select the “binary” control mode. Fig. 15 below shows the “Drive Profile” configuration page for the X1 motor controller, using the “binary” control mode. This mode provides a movement table (see Fig. 15) that allows for programming up to 32 parameterized movements, specifying the movement mode, target, maximum acceleration, speed, and the number of the next movement to execute. For the brushless motors, we will enter a single movement at position 1 using the ADR (Analogue Rotation with Direction Definition) mode. This mode enables rotary movements by setting their speed via the analog input AI 1.

../../_images/06-drive_profile1.png

Fig. 15 “Drive Profile” configuration page of the X1 motor controller, using the “binary” control mode.

In our gantry robot setup, we have configured the following parameters for the movement at position 1 for all brushless motors (X1, X2, Y):

  • Mode: ADR (Analogue Rotation with Direction Definition).

  • Goal (mm): This field will be left empty.

  • Acceleration (mm/s2): 300 mm/s2.

  • Velocity (mm/s): 720 mm/s, equivalent to a motor speed of 3000 RPM.

  • Deceleration (mm/s2): 300 mm/s2, identical to the acceleration setting.

  • Pause (ms): This field will be left empty.

  • Next: This field will be left empty.

Note

As stated in Section 1.2, the X1, X2, and Y axes use linear units with a feed rate of 144 mm/rev and the motors have a 10:1 gear ratio. Therefore, an axis speed of 720 mm/s is equivalent to a motor speed of 720 × 60 × 10 / 144 = 3000 RPM.

As explained in Section 2.5, analog input AI 1 was configured to operate within a range of ±10 V. The controller will vary the motor speed proportionally to the applied analog signal. Thus, when input AI 1 is set to -10 V, the motor will rotate at the maximum speed of 720 mm/s (3000 RPM) counter-clockwise, while when adjusted to 10 V, the motor will rotate at the maximum speed of 720 mm/s (3000 RPM) clockwise.

Once the movement is configured, it must be activated for the controller to move the motor. There are two activation methods:

  1. Select the movement by clicking on row number 1 of the movement table and then clicking the “start” button at the bottom of the page.

  2. Use the controller’s digital inputs and outputs.

While option 1 may be suitable for testing, implementing option 2 is necessary for a production system. In this scenario, for a powered controller with the “enable” signal not yet activated, the following steps should be followed:

  1. Set digital inputs 1 to 5 (X2.1 to X2.5) with the selected movement number minus one, where input 1 represents the least significant bit and input 5 the most significant. For example, for movement number 1, the inputs will be set to 00000; for 2, to 00001; and so on, up to 32, which will be set to 11111. For movement number 1, which is our case, digital inputs 1 to 5 can simply be left disconnected.

  2. Set digital input 7 (X2.7, the “enable” input) to a high level.

  3. Once the “enable” input is activated, wait for the controller to set digital output 1 (X3.1, the “ready” output) to a high level. This output indicates that the controller is prepared to accept position commands.

  4. Once the “ready” output is activated, send a square pulse to digital input 6 (X2.6, the “start” signal) to initialize the movement program. The controller has a debounce filter with a time of 10 ms on digital inputs 1 to 10 (excluding step and direction inputs), so the pulse must have a duration greater than 10 ms for the controller to detect it. In our gantry robot setup, we have set the pulse duration to 100 ms.

In our gantry robot setup, the movement activation process has been configured in LinuxCNC and is executed using the MESA 7I77 board, which sends and receives the corresponding signals.
